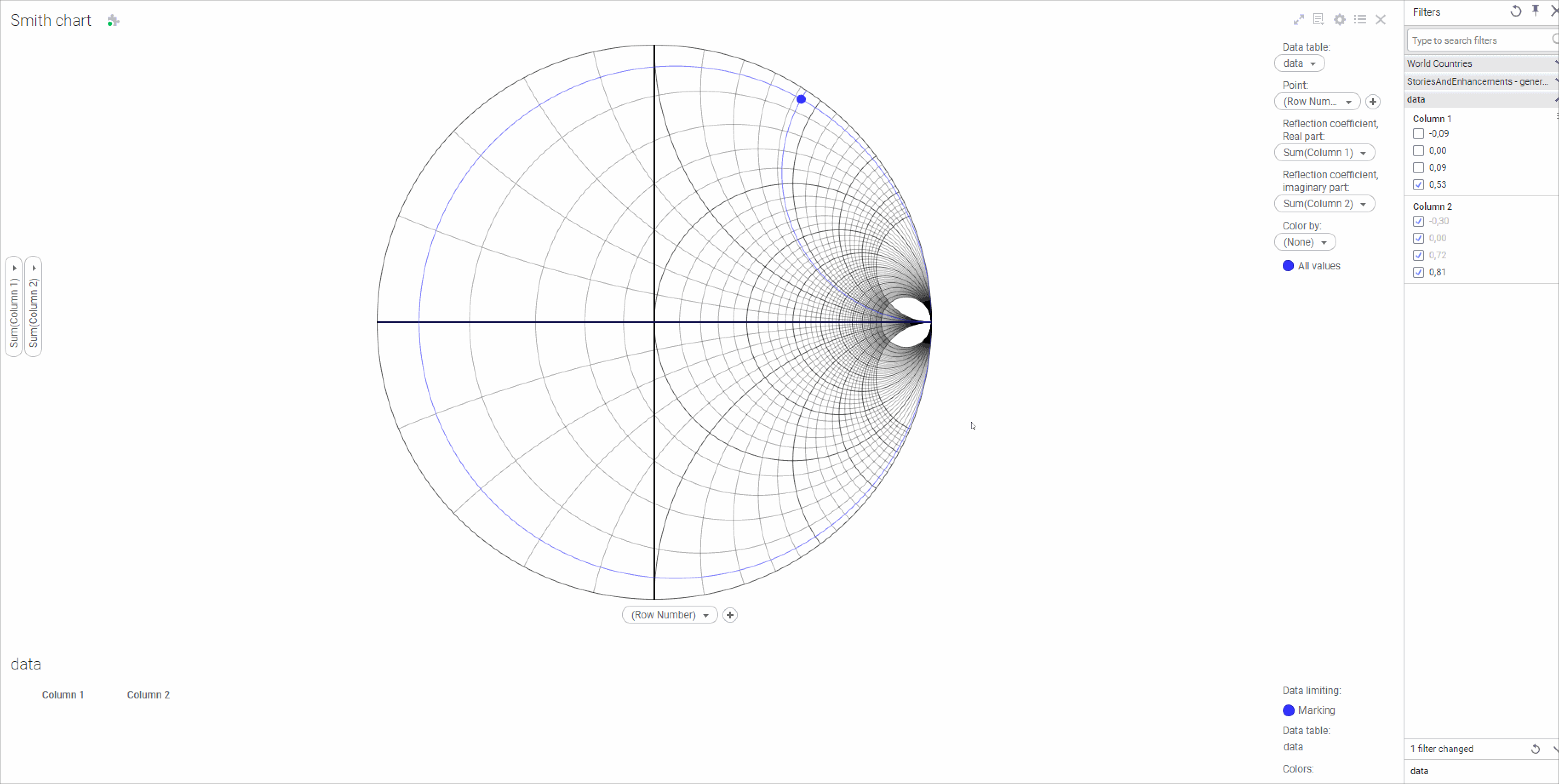

An early prototype of a smith chart exists in the prototypes section of the Spotfire Mods GitHub repository. It would be interesting to hear about any features that you would expect of a Smith chart.
The prototype uses a categorical axis for points and uses two continuous axes to represent the real and imaginary part. The points can also be colored via a color axis.
Thank you Brian.

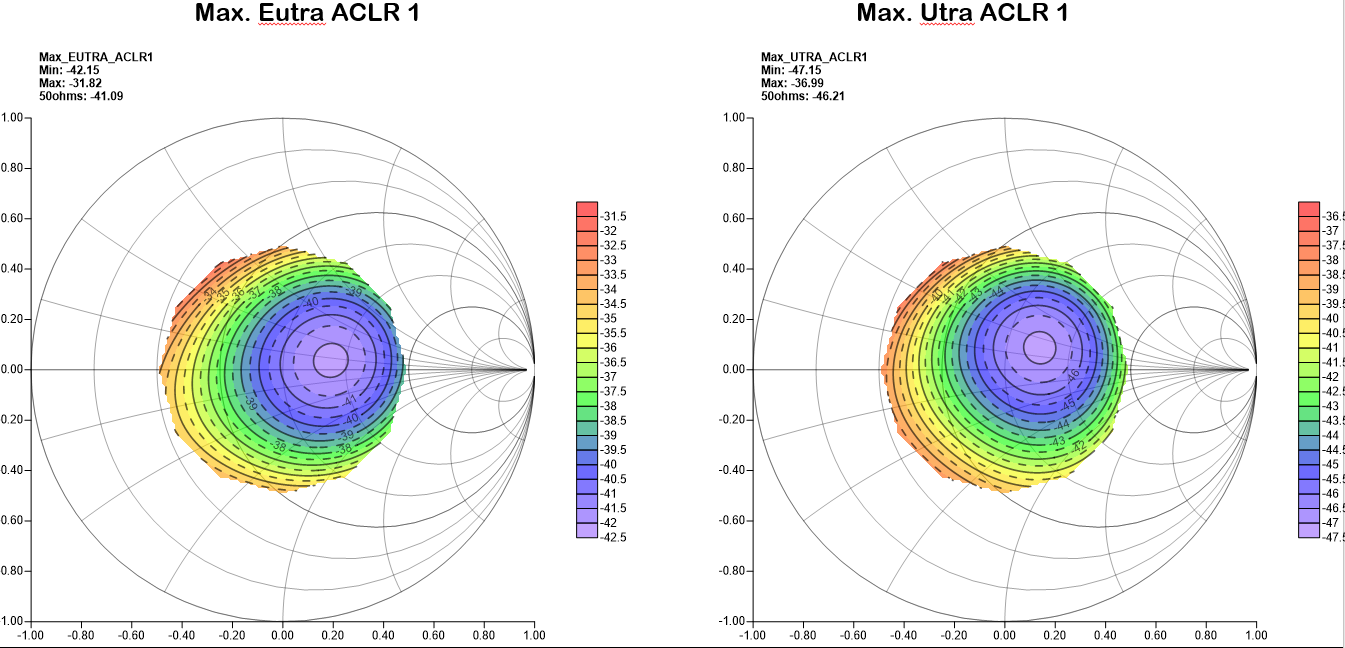

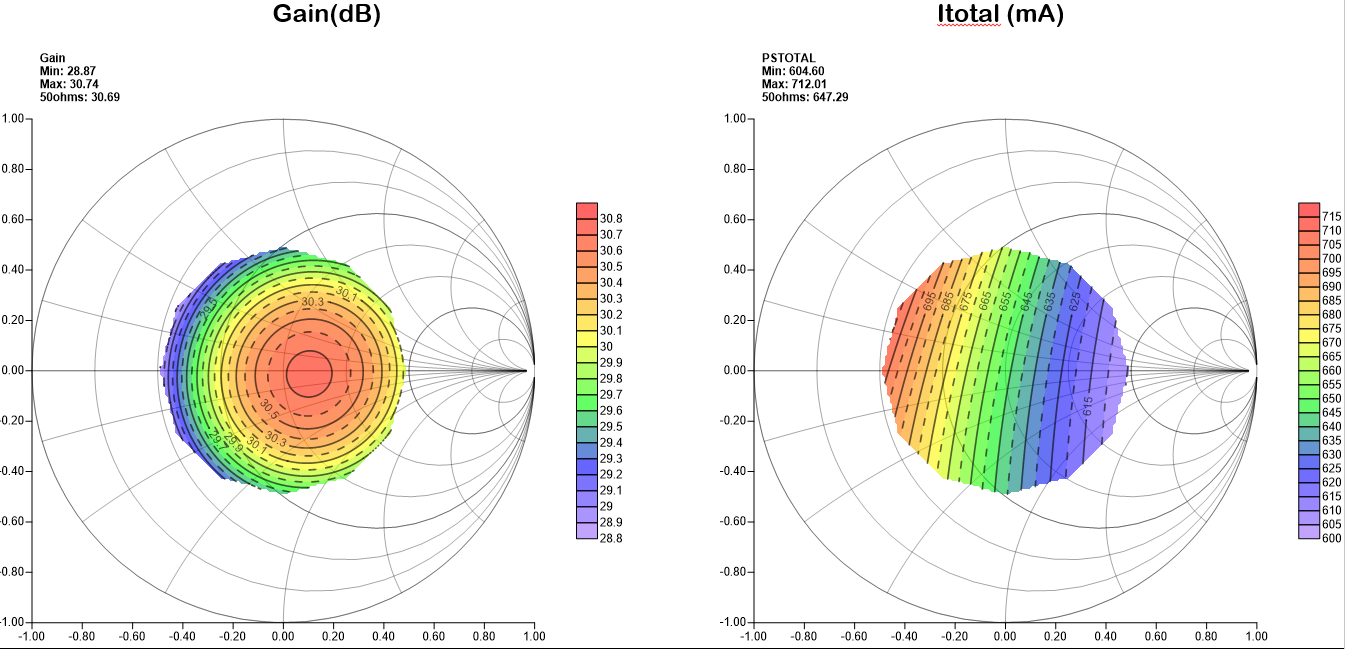

Niklas - yes that is the chart type we are looking for. Attached are some examples of our current plots via another tool.
Brian, many thanks for contributing your idea. Just to be sure, is this the chart type you are referring to: https://en.wikipedia.org/wiki/Smith_chart
